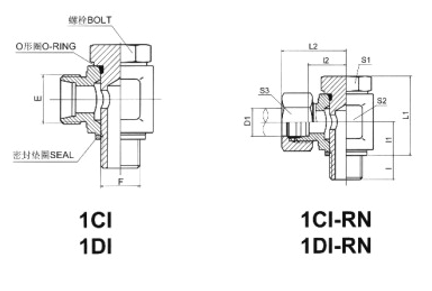

1C1 90°ELBOW FITTINGS
Tel
Product Description
| PART NO. | THREAD | D1 TUBE O.D. |
DIMENSIONS | BOLT | O-RING | SEAL | MPa | ||||||||
| E | F | 1 | 11 | L1 | 12 | L2 | S1 | S2 | S3 | ||||||
| 1CI-12-10 | M12X1.5 | M10X1 | 6 | 10 | 9 | 25.5 | 12 | 27 | 14 | 17 | 14 | 700M-101 | O08.1X1.6 | ZHD-10 | 31.5 L |
| 1CI-14-12 | M14X1.5 | M12X1.5 | 8 | 12 | 14.5 | 33 | 14.5 | 29 | 17 | 22 | 17 | 700M-12I | O09.3X2.4 | ZHD-12 | |
| 1CI-16-14 | M16X1.5 | M14X1.5 | 10 | 11 | 12.5 | 33 | 16.5 | 31 | 19 | 24 | 19 | 700M-141 | O11.3X2.4 | ZHD-14 | |
| 1CI-18-16 | M18X1.5 | M16X1.5 | 12 | 11 | 15 | 39 | 19 | 34 | 22 | 27 | 22 | 700M-161 | O13.3X2.4 | ZHD-16 | |
| 1CI-22-18 | M22X1.5 | M18X1.5 | 15 | 12 | 16.5 | 42 | 21.5 | 37 | 24 | 30 | 27 | 700M-18I | O15.3X2.4 | ZHD-18 | |
| 1Cl-26-22 | M26X1.5 | M22X1.5 | 18 | 12 | 17.5 | 49 | 22 | 38 | 27 | 32 | 32 | 700M-221 | O19.3X2.4 | ZHD-22 | |
| 1CI-30-26 | M30X2 | M26X1.5 | 22 | 14 | 22 | 56 | 28.5 | 45 | 36 | 41 | 36 | 700M-26I | O23.5X3.0 | ZHD-27 | 16 L |
| 1CI-36-33 | M36X2 | M33X2 | 28 | 18 | 30.5 | 71 | 33 | 50 | 41 | 50 | 41 | 700M-331 | O29.5X3.0 | ZHD-33 | |
| 1CI-45-42 | M45X2 | M42X2 | 35 | 20 | 35.5 | 82 | 37 | 59 | 50 | 60 | 50 | 700M-42I | O38.5X3.0 | ZHD-42 | |
| 1CI-52-48 | M52X2 | M48X2 | 42 | 22 | 40.5 | 93 | 41.5 | 64 | 55 | 70 | 60 | 700M-48I | O44.5X3.0 | ZHD-48 | |
| 1DI-14-12 | M14X1.5 | M12X1.5 | 6 | 12 | 14.5 | 33 | 16.5 | 31 | 17 | 22 | 17 | 700M-121 | O09.3X2.4 | ZHD-12 | 63 S |
| 1DI-16-14 | M16X1.5 | M14X1.5 | 8 | 12 | 14.5 | 33 | 17.5 | 32 | 19 | 24 | 19 | 700M-141 | O11.3X2.4 | ZHD-14 | |
| 1DI-18-16 | M18X1.5 | M16X1.5 | 10 | 12 | 17 | 39 | 19.5 | 36 | 22 | 27 | 22 | 700M-16I | O13.3X2.4 | ZHD-16 | |
| 1DI-20-18 | M20X1.5 | M18X1.5 | 12 | 12 | 18.5 | 42 | 21 | 37 | 24 | 30 | 24 | 700M-18I | O15.3X2.4 | ZHD-18 | |
| 1DI-22-20 | M22X1.5 | M20X1.5 | 14 | 14 | 20 | 46 | 23.5 | 41 | 27 | 32 | 27 | 700M-20I | O17.3X2.4 | ZHD-20 | |
| 1DI-24-22 | M24X1.5 | M22X1.5 | 16 | 14 | 17.5 | 49 | 23 | 41 | 27 | 32 | 30 | 700M-22I | O19.3X2.4 | ZHD-22 | |
| 1DI-30-27 | M30X2 | M27X2 | 20 | 16 | 22 | 56 | 27.5 | 49 | 36 | 41 | 36 | 700M-271 | O23.5X3.0 | ZHD-27 | 40 S |
| 1DI-36-33 | M36X2 | M33X2 | 25 | 18 | 30.5 | 71 | 32.5 | 57 | 41 | 50 | 46 | 700M-331 | O29.5X3.0 | ZHD-33 | |
| 1DI-42 | M42X2 | M42X2 | 30 | 20 | 35.5 | 82 | 38 | 65 | 50 | 60 | 50 | 700M-42I | O38.5X3.0 | ZHD-42 | |
| 1DI-52-48 | M52X2 | M48X2 | 38 | 22 | 40.5 | 93 | 42.5 | 73 | 55 | 70 | 60 | 700M-48I | O44.5X3.0 | ZHD-48 | |
| Note: 1.In case if you are interested to order the adapter in complete set with cuting ring and nut jt is necessary to insert suffix "RN" after our part no., for example 1DI-36-33RN | |||||||||||||||
