1C STRAIGHT FITTINGS
Tel

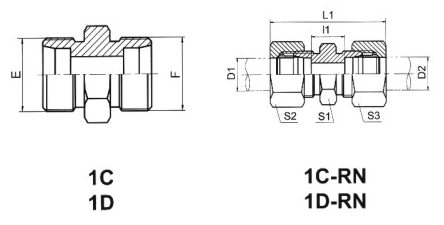

Product Description
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | ||||||||
| E | F | D1 | D2 | l1 | L1 | S1 | S2 | S3 | ||||
| 1C-12 | M12X1.5 | M12X1.5 | 6 | 6 | 10 | 39 | 12 | 14 | 14 | 31.5 L |
||
| 1C-14 | M14X1.5 | M14X1.5 | 8 | 8 | 11 | 40 | 14 | 17 | 17 | |||
| 1C-16 | M16X1.5 | M16X1.5 | 10 | 10 | 13 | 42 | 17 | 19 | 19 | |||
| 1C-18 | M18X1.5 | M18X1.5 | 12 | 12 | 14 | 43 | 19 | 22 | 22 | |||
| 1C-22 | M22X1.5 | M22X1.5 | 15 | 15 | 16 | 46 | 24 | 27 | 27 | |||
| 1C-26 | M26X1.5 | M26X1.5 | 18 | 18 | 16 | 48 | 27 | 32 | 32 | |||
| 1C-30 | M30X2 | M30X2 | 22 | 22 | 20 | 52 | 32 | 36 | 36 | 16 L |
||
| 1C-36 | M36X2 | M36X2 | 28 | 28 | 21 | 54 | 41 | 41 | 41 | |||
| 1C-45 | M45X2 | M45X2 | 35 | 35 | 20 | 63 | 46 | 50 | 50 | |||
| 1C-52 | M52X2 | M52X2 | 42 | 42 | 21 | 66 | 55 | 60 | 60 | |||
| 1D-14 | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 45 | 14 | 17 | 17 | 63 S |
||
| 1D-16 | M16X1.5 | M16X1.5 | 8 | 8 | 18 | 47 | 17 | 19 | 19 | |||
| 1D-18 | M18X1.5 | M18X1.5 | 10 | 10 | 17 | 49 | 19 | 22 | 22 | |||
| 1D-20 | M20X1.5 | M20X1.5 | 12 | 12 | 19 | 51 | 22 | 24 | 24 | |||
| 1D-22 | M22X1.5 | M22X1.5 | 14 | 14 | 22 | 57 | 24 | 27 | 27 | |||
| 1D-24 | M24X1.5 | M24X1.5 | 16 | 16 | 21 | 57 | 27 | 30 | 30 | 40 S |
||
| 1D-30 | M30X2 | M30X2 | 20 | 20 | 23 | 66 | 32 | 36 | 36 | |||
| 1D-36 | M36X2 | M36X2 | 25 | 25 | 26 | 74 | 41 | 46 | 46 | |||
| 1D-42 | M42X2 | M42X2 | 30 | 30 | 27 | 80 | 46 | 50 | 50 | |||
| 1D-52 | M52X2 | M52X2 | 38 | 38 | 29 | 90 | 55 | 60 | 60 |
31.5 S |
||
| Note :In case if you are interested to order the adapter in complete set with cuting ring and nut ,it is necessary to insert suffix "RN"after our part no.,for example 1C-30RN |
||||||||||||
