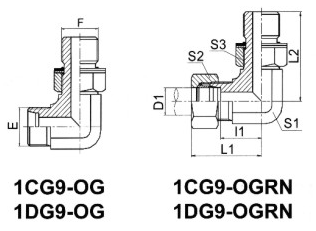

1CG9-OG 90°ELBOW BSP THREAD ADJUSTABLE STUD ENDS WITH O-RING SEALING
Tel
Product Description
| PART NO. | THREAD | TUBE 0.D | DIMENSIONS | MPa | ||||||
| E | F | D1 | 11 | L1 | L2 | S1 | S2 | S3 | ||
| 1CG9-12-02OG | M12X1.5 | G1/8"X28 | 6 | 13 | 28 | 25.5 | 11 | 14 | 14 | 31.5 L |
| 1CG9-14-04OG | M14X1.5 | G1/4"X19 | 8 | 15.5 | 30.5 | 31.3 | 14 | 17 | 19 | |
| 1CG9-16-04OG | M16X1.5 | G1/4"X19 | 10 | 17.5 | 32.5 | 32.5 | 16 | 19 | 19 | |
| 1CG9-16-06OG | M16X1.5 | G3/8"X19 | 10 | 17.5 | 32.5 | 35.8 | 16 | 19 | 22 | |
| 1CG9-18-06OG | M18X1.5 | G3/8"X19 | 12 | 19 | 34 | 37 | 19 | 22 | 22 | |
| 1CG9-22-08OG | M22X1.5 | G1/2"X14 | 15 | 22 | 37 | 43.2 | 22 | 27 | 27 | |
| 1CG9-26-08OG | M26X1.5 | G1/2"X14 | 18 | 25.5 | 42 | 46 | 27 | 32 | 27 | |
| 1CG9-26-12OG | M26X1.5 | G3/4"X14 | 18 | 25.5 | 42 | 49.3 | 27 | 32 | 32 | |
| 1CG9-30-12OG | M30X2 | G3/4"X14 | 22 | 29.5 | 45.8 | 52 | 30 | 36 | 32 | 16 L |
| 1CG9-30-16OG | M30X2 | G1"X11 | 22 | 31.5 | 48 | 53 | 33 | 36 | 41 | |
| 1CG9-36-16OG | M36X2 | G1"X11 | 28 | 33 | 49.8 | 56 | 36 | 41 | 41 | |
| 1CG9-36-20OG | M36X2 | G1.1/4"X11 | 28 | 36 | 52.8 | 59 | 41 | 41 | 50 | |
| 1CG9-45-20OG | M45X2 | G1.1/4"X11 | 35 | 39 | 60.7 | 63 | 48 | 50 | 50 | |
| 1CG9-52-24OG | M52X2 | G1.1/2"X11 | 42 | 40.5 | 67.8 | 64.5 | 50 | 60 | 55 | |
| 1DG9-14-04OG | M14X1.5 | G1/4"X19 | 6 | 17.5 | 32.5 | 31.3 | 14 | 17 | 19 | 63 S |
| 1DG9-16-04OG | M16X1.5 | G1/4"X19 | 8 | 18.5 | 33.7 | 32.5 | 16 | 19 | 19 | |
| 1DG9-16-06OG | M16X1.5 | G3/8"X19 | 8 | 18.5 | 33.7 | 35.5 | 16 | 19 | 22 | |
| 1DG9-18-06OG | M18X1.5 | G3/8"X19 | 10 | 19.5 | 36 | 36.8 | 19 | 22 | 22 | |
| 1DG9-20-06OG | M20X1.5 | G3/8"X19 | 12 | 19.5 | 36 | 37 | 19 | 24 | 22 | |
| 1DG9-22-08OG | M22X1.5 | G1/2"X14 | 14 | 26.9 | 41 | 43.2 | 22 | 27 | 27 | |
| 1DG9-24-08OG | M24X1.5 | G1/2"X14 | 16 | 24 | 42.5 | 43 | 24 | 30 | 27 | 40 S |
| 1DG9-30-12OG | M30X2 | G3/4"X14 | 20 | 28 | 49.5 | 52 | 30 | 36 | 32 | |
| 1DG9-36-16OG | M36X2 | G1"X11 | 25 | 37.5 | 56.8 | 56 | 36 | 46 | 41 | |
| 1DG9-42-20OG | M42X2 | G1.1/4"X11 | 30 | 36 | 62.7 | 59.5 | 41 | 50 | 50 | |
| 1DG9-52-24OG | M52X2 | G1.1/2"X11 | 38 | 41.5 | 76.8 | 63.5 | 55 | 60 | 55 |
31.5 S |
| Note: In case if you are interested to order the adapter in complete set with cutting ring and nut it is necessary to insert suffix "RN"after our part no.,for example 1CG9-30-12OGRN. | ||||||||||
