1CW WELD FITTINGS
Tel
Product Description

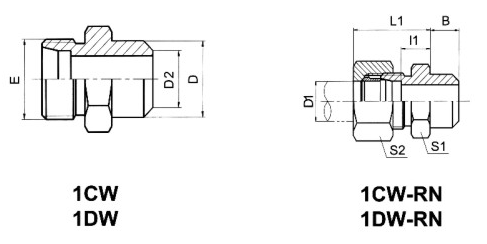

| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | |||||||
| E | D1 | D2 | B | D | I1 | L | S1 | S2 | |||
| 1CW-12-06 | M12x1.5 | 6 | 6 | 7 | 10 | 7 | 22 | 12 | 14 | 31.5 L |
|
| 1CW-14-08 | M14x1.5 | 8 | 8 | 8 | 12 | 8 | 23 | 14 | 17 | ||
| 1CW-16-10 | M16x1.5 | 10 | 10 | 8 | 14 | 10 | 24 | 17 | 19 | ||
| 1CW-18-12 | M18x1.5 | 12 | 12 | 8 | 16 | 10 | 25 | 19 | 22 | ||
| 1CW-22-15 | M22x1.5 | 15 | 15 | 10 | 19 | 11 | 26 | 22 | 27 | ||
| 1CW-26-18 | M26X1.5 | 18 | 18 | 10 | 22 | 13.5 | 28 | 27 | 32 | ||
| 1CW-26-22 | M26X1.5 | 18 | 22 | 10 | 27 | 12.5 | 28 | 27 | 32 | 16 L |
|
| 1CW-30-22 | M30x2 | 22 | 22 | 12 | 27 | 16.5 | 30 | 32 | 36 | ||
| 1CW-30-25 | M30x2 | 22 | 25 | 12 | 31 | 13.5 | 30 | 32 | 36 | ||
| 1CW-36-28 | M36x2 | 28 | 28 | 12 | 32 | 18.5 | 33 | 41 | 41 | ||
| 1CW-45-35 | M45X2 | 35 | 35 | 14 | 40 | 18.5 | 36 | 46 | 50 | ||
| 1CW-52-42 | M52X2 | 42 | 42 | 16 | 46 | 19 | 39 | 55 | 60 | ||
| 1DW-14-06 | M14x1.5 | 6 | 6 | 7 | 11 | 11 | 26 | 14 | 7 | 63 S |
|
| 1DW-16-08 | M16x1.5 | 8 | 8 | 8 | 13 | 13 | 28 | 17 | 19 | ||
| 1DW-18-10 | M18x1.5 | 10 | 10 | 8 | 15 | 12.5 | 29 | 19 | 22 | ||
| 1DW-20-12 | M20x1.5 | 12 | 12 | 10 | 17 | 14.5 | 31 | 22 | 24 | ||
| 1DW-22-14 | M22x1.5 | 14 | 14 | 10 | 19 | 16 | 34 | 24 | 27 | ||
| 1DW-24-16 | M24x1.5 | 16 | 16 | 10 | 21 | 15.5 | 34 | 27 | 30 | 40 S |
|
| 1DW-30-20 | M30x2 | 20 | 20 | 12 | 26 | 17.5 | 39 | 32 | 36 | ||
| 1DW-36-25 | M36x2 | 25 | 25 | 12 | 31 | 20 | 44 | 41 | 46 | ||
| 1DW-42-30 | M42x2 | 30 | 30 | 14 | 36 | 20.5 | 47 | 46 | 50 | ||
| 1DW-52-38 | M52X2 | 38 | 38 | 16 | 44 | 23 | 54 | 55 | 60 |
31.5 S |
|
| Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN"after our part no.,for example 1DW-20-12RN. | |||||||||||
