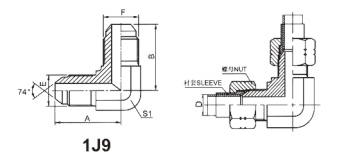

1J9 90°ELBOW JIC MALE 74°CONE
Tel
Product Description
| PART NO. | THREAD | DIMENSIONS | |||||||
| E | F | A | B | S1 | |||||
| 1J9-02 | 5/16"X24 | 5/16"X24 | 20.5 | 20.5 | 11 | ||||
| 1J9-03 | 3/8"X24 | 3/8"X24 | 22 | 22 | 11 | ||||
| 1J9-04 | 7/16"X20 | 7/16"X20 | 24.5 | 24.5 | 11 | ||||
| 1J9-05 | 1/2"X20 | 1/2"X20 | 26.6 | 26.6 | 14 | ||||
| 1J9-05-06 | 1/2"X20 | 9/16"X18 | 26.6 | 26.9 | 14 | ||||
| 1J9-06 | 9/16"X18 | 9/16"X18 | 26.9 | 26.9 | 14 | ||||
| 1J9-06-08 | 9/16"X18 | 3/4"X16 | 30 | 32 | 19 | ||||
| 1J9-06-10 | 9/16"X18 | 7/8"X14 | 32 | 37.8 | 22 | ||||
| 1J9-08 | 3/4"X16 | 3/4"X16 | 32 | 32 | 19 | ||||
| 1J9-08-10 | 3/4"X16 | 7/8"X14 | 34.8 | 37.8 | 22 | ||||
| 1J9-10 | 7/8"X14 | 7/8"X14 | 37.8 | 37.8 | 22 | ||||
| 1J9-10-12 | 7/8"X14 | 1.1/16"X12 | 41 | 44.2 | 27 | ||||
| 1J9-12 | 1.1/16"X12 | 1.1/16"X12 | 44.2 | 44.2 | 27 | ||||
| 1J9-14 | 1.3/16"X12 | 1.3/16"X12 | 47.5 | 47.5 | 30 | ||||
| 1J9-16 | 1.5/16"X12 | 1.5/16"X12 | 49 | 49 | 33 | ||||
| 1J9-20 | 1.5/8"X12 | 1.5/8"X12 | 55.5 | 55.5 | 41 | ||||
| 1J9-24 | 1.7/8"X12 | 1.7/8"X12 | 62.5 | 62.5 | 48 | ||||
| 1J9-32 | 2.1/2"X12 | 2.1/2"X12 | 78 | 78 | 63 | ||||
| Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube | |||||||||
