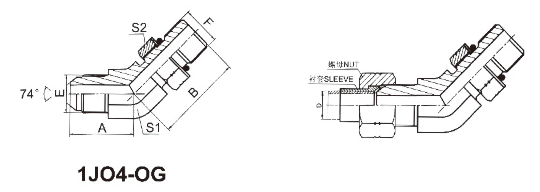

1JO4-OG 45° ELBOW JIC MALE 74°CONE / SAE O-RING BOSS L-SERIES ISO 11926-3

Tel

E-mail

Product Description

PART NO	THREAD		O-RING		DIMENSIONS
PART NO	E	F		F端	A	B	S1	S2
1JO4-04OG	7/16"X20	7/16"X20		O904	21	24	11	17
1JO4-04-06OG	7/16"X20	9/16"X18		O906	22.3	27.5	14	19
1JO4-04-08OG	7/16"X20	3/4"X16		O908	23.5	31.5	19	24
1JO4-05OG	1/2"X20	1/2"X20		O905	22	26.7	14	17
1JO4-05-04OG	1/2"X20	7/16"X20		O904	22.3	26	14	17
1JO4-06OG	9/16"X18	9/16"X18		O906	23.5	28	14	19
1JO4-06-04OG	9/16”X18	7/16"X20		O904	22.8	26	14	17
1JO4-06-05OG	9/16"X18	1/2"X20		O905	22.8	26.5	14	17
1JO4-06-08OG	9/16"X18	3/4"X16		O908	25	32.5	19	24
1JO4-06-10OG	9/16"X18	7/8"X14		O910	25.5	38.5	22	27
1JO4-08OG	3/4"X16	3/4"X16		O908	25.8	32.5	19	24
1JO4-08-06OG	3/4"X16	9/16"X18		O906	25.5	28	19	19
1JO4-08-10OG	3/4"X16	7/8"X14		O910	28	38.7	22	27
1JO4-08-12OG	3/4"X16	1.1/16"X12		O912	30	43.9	27	32
1JO4-10OG	7/8"X14	7/8"X14		O910	29.5	38.7	22	27
1JO4-10-08OG	7/8"X14	3/4"X16		O908	29.5	33	22	27
1JO4-10-12OG	7/8"X14	1.1/16"X12		O912	33	43.9	27	32
1JO4-12OG	1.1/16"X12	1.1/16"X12		O912	34	43.5	27	32
1JO4-12-10OG	1.1/16"X12	7/8"X14		O910	34	42	27	27
1JO4-12-16OG	1.1/16"X12	1.5/16"X12		O916	37	45.5	33	41
1JO4-14OG	1.3/16"X12	1.3/16"X12		O914	37	44	30	36
1JO4-16OG	1.5/16"X12	1.5/16"X12		O916	38	45.5	33	41
1JO4-16-12OG	1.5/16"X12	1.1/16"X12		O912	38	45	33	32
1JO4-16-20OG	1.5/16"X12	1.5/8"X12		O920	40.5	47	41	50
1JO4-20OG	1.5/8"X12	1.5/8"X12		O920	42	48.5	41	50
1JO4-20-24OG	1.5/8"X12	1.7/8"X12		O924	46	50	48	55
1JO4-24OG	1.718"X12	1.7/8"X12		O924	48	50	48	55
1JO4-32OG	2.1/2"X12	2.1/2"X12		O932	58	54	63	70
Note:1 Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for motric tube, the nut NB200 and sleeve NB300 is suitable for inch tube.2 Fend is connected with ISO 11926-1 port.
