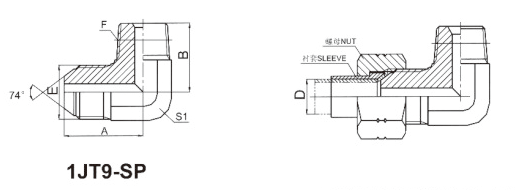

1JT9-SP 90°ELBOW JIC MALE 74°CONE / BSPT MALE
Tel
Product Description
| PART NO. | THREAD | DIMENSIONS | |||||||
| E | F | A | B | S1 | |||||
| 1JT9-02SP | 5/16"X24 | R1/8"X28 | 20.5 | 21 | 11 | ||||
| 1JT9-04-02SP | 7/16"X20 | R1/8"X28 | 24.5 | 21 | 11 | ||||
| 1JT9-04SP | 7/16"X20 | R1/4"X19 | 26.6 | 25.5 | 14 | ||||
| 1JT9-04-06SP | 7/16"X20 | R3/8"X19 | 27.5 | 28 | 16 | ||||
| 1JT9-05-02SP | 1/2"X20 | R1/8"X28 | 26.6 | 23.5 | 14 | ||||
| 1JT9-05-04SP | 1/2"X20 | R1/4"X19 | 26.6 | 25.5 | 14 | ||||
| 1JT9-05-06SP | 1/2"X20 | R3/8"X19 | 27.5 | 28 | 16 | ||||
| 1JT9-06-02SP | 9/16"X18 | R1/8"X28 | 26.9 | 23.5 | 14 | ||||
| 1JT9-06-04SP | 9/16"X18 | R1/4"X19 | 26.9 | 25.5 | 14 | ||||
| 1JT9-06SP | 9/16"X18 | R3/8"X19 | 28.5 | 28.5 | 16 | ||||
| 1JT9-06-08SP | 9/16"X18 | R1/2"X14 | 32 | 36 | 22 | ||||
| 1JT9-08-04SP | 3/4"X16 | R1/4"X19 | 32 | 28 | 19 | ||||
| 1JT9-08-06SP | 3/4"X16 | R3/8"X19 | 32 | 30.5 | 19 | ||||
| 1JT9-08SP | 3/4"X16 | R1/2"X14 | 34.8 | 36 | 22 | ||||
| 1JT9-08-12SP | 3/4"X16 | R3/4"X14 | 37.9 | 43.5 | 27 | ||||
| 1JT9-10-06SP | 7/8"X14 | R3/8"X19 | 38 | 32 | 22 | ||||
| 1JT9-10-08SP | 7/8"X14 | R1/2"X14 | 37.8 | 36 | 22 | ||||
| 1JT9-10-12SP | 7/8"X14 | R3/4"X14 | 41 | 43.5 | 27 | ||||
| 1JT9-12-08SP | 1.1/16"X12 | R1/2"X14 | 44.2 | 40 | 27 | ||||
| 1JT9-12SP | 1.1/16"X12 | R3/4"X14 | 44.2 | 43.5 | 27 | ||||
| 1JT9-12-16SP | 1.1/16"X12 | R1"X11 | 47.8 | 50 | 33 | ||||
| 1JT9-16-12SP | 1.5/16"X12 | R3/4"X14 | 49 | 47.5 | 33 | ||||
| 1JT9-16SP | 1.5/16"X12 | R1"X11 | 49 | 50 | 33 | ||||
| 1JT9-16-20SP | 1.5/16"X12 | R1.1/4"X11 | 54 | 56.5 | 41 | ||||
| 1JT9-20-16SP | 1.5/8"X12 | R1"X11 | 55.5 | 56.5 | 41 | ||||
| 1JT9-20SP | 1.5/8"X12 | R1.1/4"X11 | 55.5 | 56.5 | 41 | ||||
| 1JT9-24-20SP | 1.7/8"X12 | R1.14"X11 | 62.5 | 61 | 48 | ||||
| 1JT9-24SP | 1.7/8"X12 | R1.1/2"X11 | 62.5 | 62.5 | 48 | ||||
| 1JT9-24-32SP | 1.7/8"X12 | R2"X11 | 74.5 | 67 | 63 | ||||
| 1JT9-32Sp | 2.1/2"X12 | R2"X11 | 75.4 | 67 | 63 | ||||
| Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. | |||||||||
