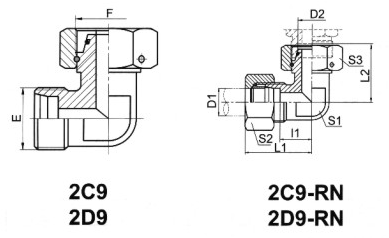

2C9 REDUCER TUBE ADAPTOR WITH SWIVEL NUT 90° ELBOW
Tel
Product Description
| PART NO. | THREAD | TUBE O.D. | DIMENSIONS | MPa | ||||||||
| E | F | D1 | D2 | 11 | L1 | L2 | S1 | S2 | S3 | |||
| 2C9-12 | M12X1.5 | M12X1.5 | 6 | 6 | 12 | 27 | 26 | 12 | 14 | 14 | 25 L |
|
| 2C9-14 | M14X1.5 | M14X1.5 | 8 | 8 | 14 | 29 | 27.5 | 12 | 17 | 17 | ||
| 2C9-16 | M16X1.5 | M16X1.5 | 10 | 10 | 15 | 30 | 29 | 14 | 19 | 19 | ||
| 2C9-18 | M18X1.5 | M18X1.5 | 12 | 12 | 17 | 32 | 29.5 | 17 | 22 | 22 | ||
| 2C9-22 | M22X1.5 | M22X1.5 | 15 | 15 | 21 | 36 | 32.5 | 19 | 27 | 27 | ||
| 2C9-26 | M26X1.5 | M26X1.5 | 18 | 18 | 23.5 | 40 | 35.5 | 24 | 32 | 32 | ||
| 2C9-30 | M30X2 | M30X2 | 22 | 22 | 27.5 | 44 | 38.5 | 27 | 36 | 36 |
16 L |
|
| 2C9-36 | M36X2 | M36X2 | 28 | 28 | 30.5 | 47 | 41.5 | 36 | 41 | 41 | ||
| 2C9-45 | M45X2 | M45X2 | 35 | 35 | 34.5 | 56 | 51 | 41 | 50 | 50 | ||
| 2C9-52 | M52X2 | M52X2 | 42 | 42 | 40 | 63 | 56 | 50 | 60 | 60 | ||
| 2D9-14 | M14X1.5 | M14X1.5 | 6 | 6 | 16 | 31 | 27 | 12 | 17 | 17 | 63 S |
|
| 2D9-16 | M16X1.5 | M16X1.5 | 8 | 8 | 17 | 32 | 27.5 | 14 | 19 | 19 | ||
| 2D9-18 | M18X1.5 | M18X1.5 | 10 | 10 | 17.5 | 34 | 30 | 17 | 22 | 22 | ||
| 2D9-20 | M20X1.5 | M20X1.5 | 12 | 12 | 21.5 | 38 | 31 | 17 | 24 | 24 | ||
| 2D9-22 | M22X1.5 | M22X1.5 | 14 | 14 | 22 | 40 | 35 | 19 | 27 | 27 | ||
| 2D9-24 | M24X1.5 | M24X1.5 | 16 | 16 | 24.5 | 43 | 36.5 | 24 | 30 | 30 | 40 S |
|
| 2D9-30 | M30X2 | M30X2 | 20 | 20 | 26.5 | 48 | 44.5 | 27 | 36 | 36 | ||
| 2D9-36 | M36X2 | M36X2 | 25 | 25 | 30 | 54 | 50 | 36 | 46 | 46 | ||
| 2D9-42 | M42X2 | M42X2 | 30 | 30 | 35.5 | 62 | 55 | 41 | 50 | 50 | ||
| 2D9-52 | M52X2 | M52X2 | 38 | 38 | 41 | 72 | 63 | 50 | 60 | 60 |
31.5 S |
|
| Note: In case if you are interested to orderthe adapter in complete set with cuting ring and nut ,it is necessary to insert suffix "RN"after our part no., for example 2C9-30RN. | ||||||||||||
